A robust equipment for the most demanding projects

General information

The M-OR-P 3180 system has been designed to manufacture large diameter pipes used in the main distribution networks for high pressure water supply, uptake in lakes, desalination stations or other municipal or state major projects.

  • Orientation degree: Class 500
  • Union system: ISS+
  • Pressure rate: PN25 bar / 362 psi
  • DN: from 315 mm to 800 mm / 12” a 30”
  • Recommended extrusion line: ARGOS 135, PH5 to PH7
  • Production: 6,000 T / year

Manufactured diameters

DN mm: 15, 355, 40, 450, 500, 560, 630, 710, 800

DN inch: 300, 375, 450, 500, 560, 600, 750

DN inch: 12", 14", 16", 18", 20", 24", 30"

DN inch: 12", 14", 16", 18", 20", 24", 30"

DN inch: 12", 14", 16", 18", 20", 24", 30"

DN mm: 300, 350, 400, 450, 500, 600, 700, 800

DN mm: 315, 355, 400, 450, 500, 560, 630, 710, 800

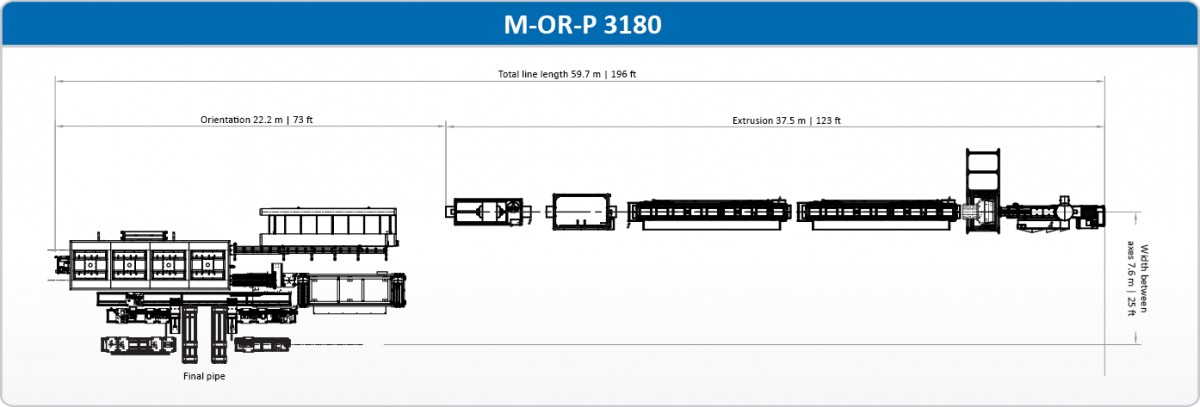

Dimensions

M-OR-P 3180
