Technology to manufacture the largest PVC-O pipes
General information
Molecor has developed the first system in the world able to manufacture PVC-O pipes from DN500 mm (18’’) to DN1200 mm (48’’) which can be used in the main distribution networks for high-pressure water supply, lake uptakes, desalination stations or other municipal or state major projects.
- Orientation degree: Class 500
- Union system: Integrated or ISS+
- Pressure rate: PN25 bar / 362 psi
- DN: from 500 mm to 1200 mm / 18” to 48”
- Recommended extrusion line: ARGOS 135, PH5 to PH7
- Production: 7.000 T / year
Manufactured diameters
DN mm: 500, 630, 710, 800, 900, 1000, 1100, 1200
DN mm: 500, 630, 710, 800, 900, 1000, 1100, 1200
DN inch: 500, 600, 750, 800, 900, 1000, 1100
DN inch: 18”, 20”, 24”, 26”, 30”, 34”, 38”, 40”, 44”
DN inch: 18”, 20”, 24”, 26”, 30”, 34”, 38”, 40”, 44”
DN inch: 18”, 20”, 24”, 26”, 30”, 34”, 38”, 40”, 44”
DN mm: 500, 600, 710, 800, 900, 1000, 1100, 1200
DN mm: 500, 630, 710, 800, 900, 1000, 1100, 1200

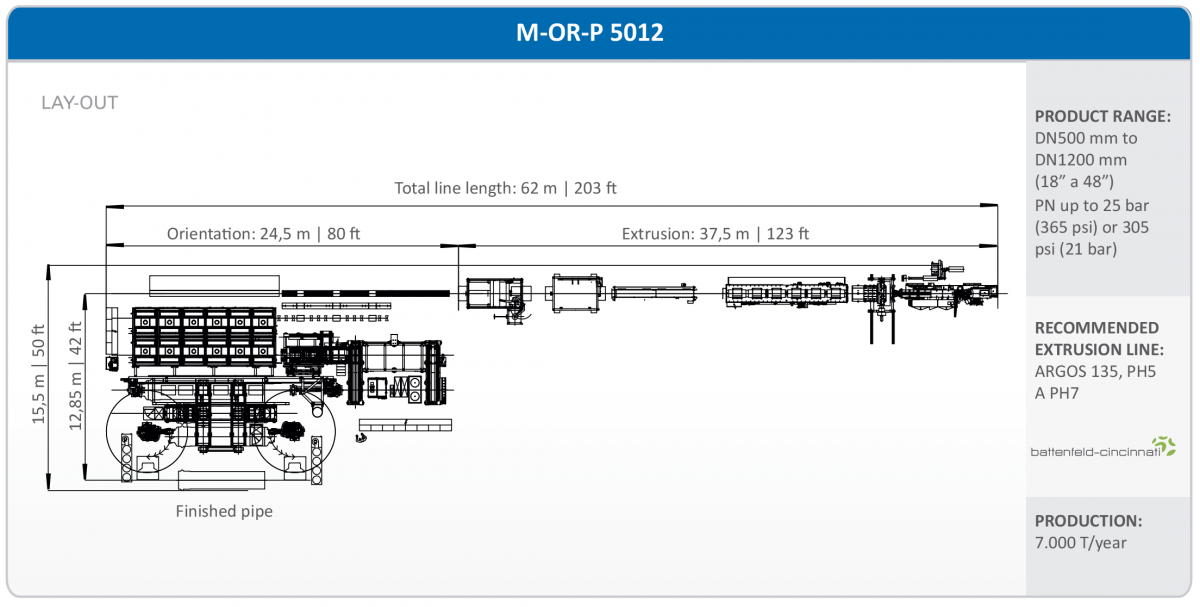

Dimensions
